当前位置:首页 > 产品中心 > 视讯会议 > 视频监控摄像机 > 监控摄像机> 产品详情

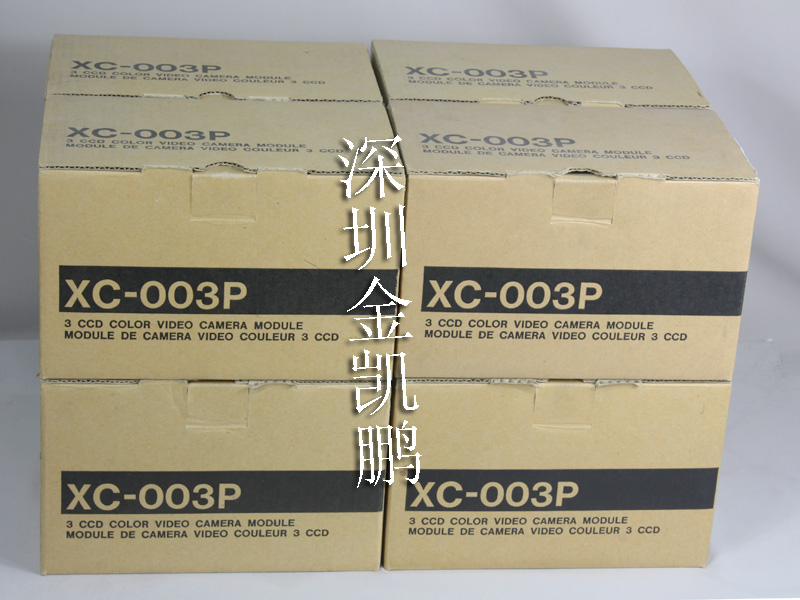

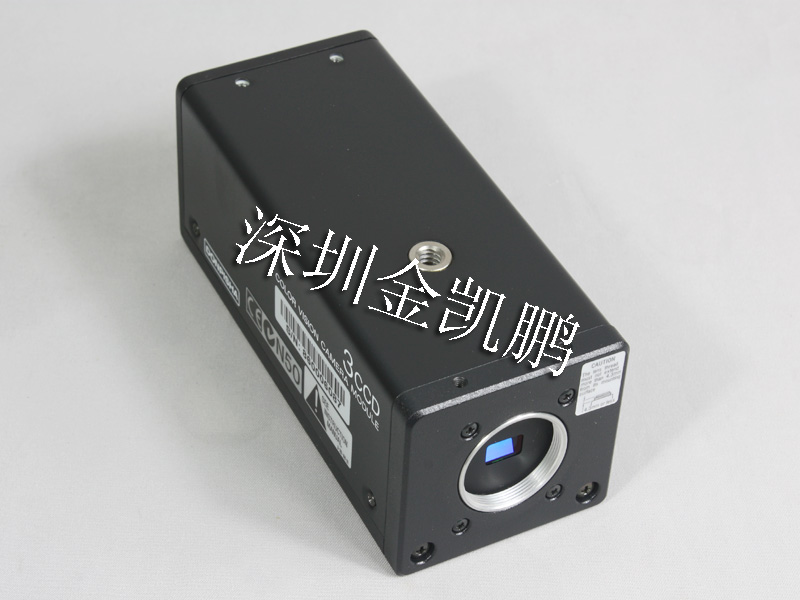

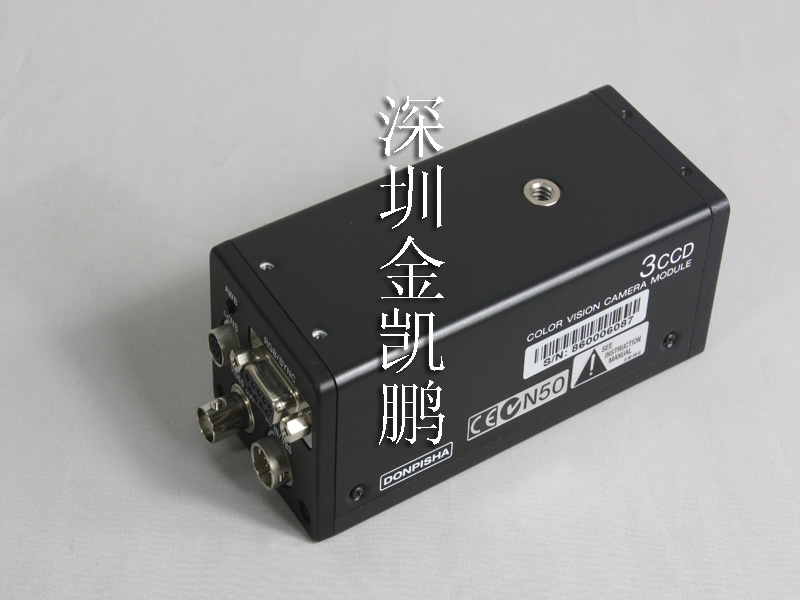

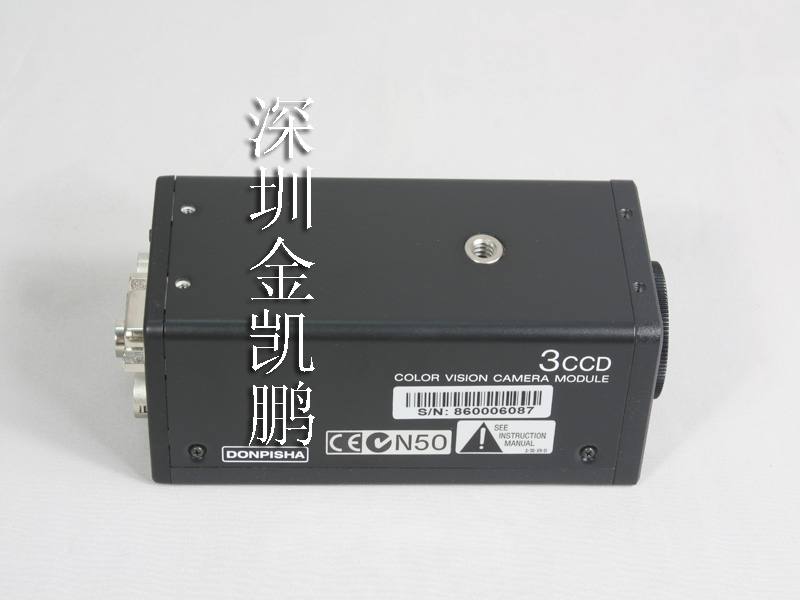

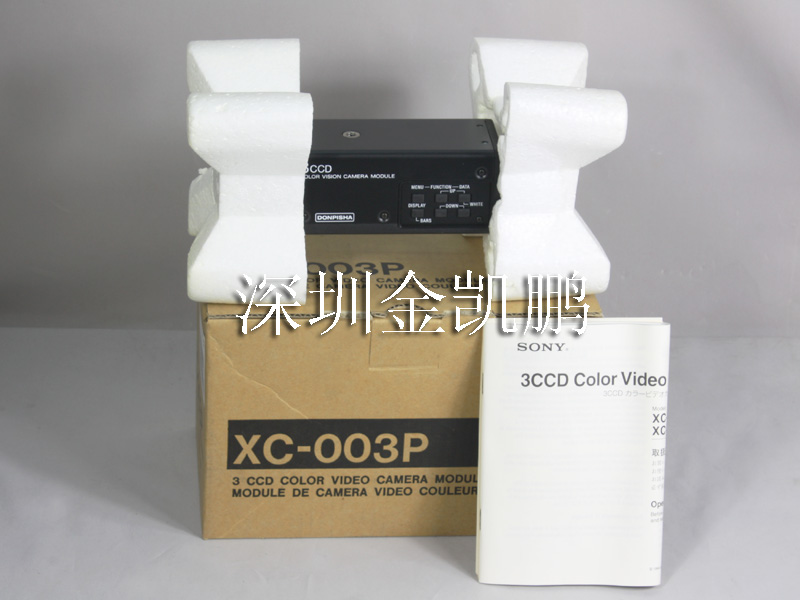

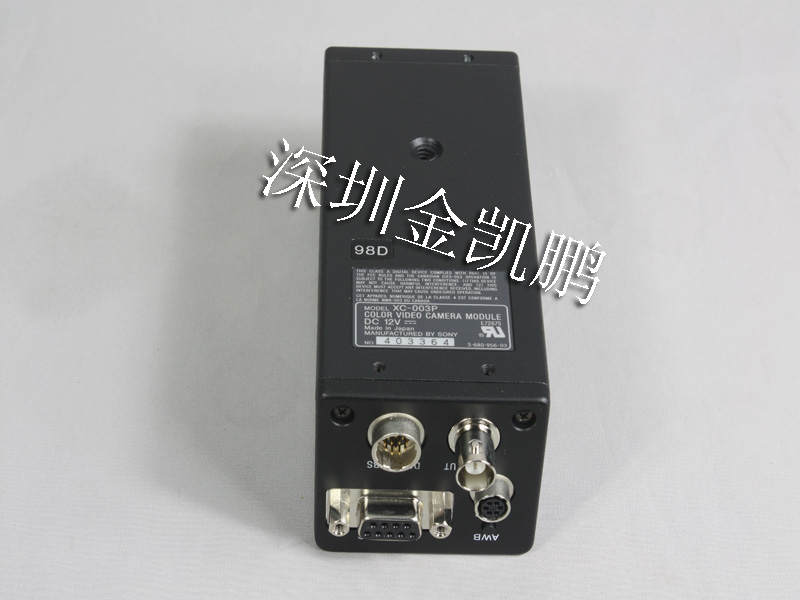

SONY(索尼)  3CCD摄像机   XC-003/003P
+点击查看大图



产品类别     监控摄像机
厂         商     SONY(索尼)
产         地     日本
产品型号      XC-003/003P



详细介绍
(全国统一免费热线: 0755-83659158 )


SONY(索尼) 彩色3CCD摄像机 XC-003/003P

OUTLINE FEATURES
XC-003/003P
SONY 彩色3CCD摄像机The XC-003/003P is a compact 3CCD RGB color camera module designed for
machine vision and image processing applications.
SONY 彩色3CCD摄像机The introduction of a 1/3-inch CCD prism block enables the XC-003/003P to
use with the standard C mount lens that is widely used in connection with an
industrial camera.
SONY 彩色3CCD摄像机The use of a C mount lens not only enables the selection of various lenses
but also facilitates the installation of an optical instrument such as a microscope.
SONY 彩色3CCD摄像机The XC-003/003P has no RGB shift because of Co-Site Sampling System,
which captures picture information accurately. Since each R/G/B signals has
768 x 494(NTSC)/752 x 582(PAL)pixels, the XC-003/003P horizontal resolution
reaches three times as high as that of a conventional 1CCD color camera
(Sony''s XC-711). Thus, the picture that is excellent in resolution and in color
reproducibility of the XC-003/003P can be used in the visual inspection
system as well as image processing.Additionally the RGB signal is
controllable by inputting external HD/VD pulses.
For obtaining a frame still image of moving object a strobe is useful, and for a
field still image,E-DONPISHA®
,an asynchronous trigger shutter function is
convenient. These functions can be used for inspecting crack of printed matter,
fruits and vegetables,semiconductor wafers,and LCD color filter

SONY 彩色3CCD摄像机FEATURES
• 3CCD C-mount
• Co-Site Sampling
• 1/3" Hyper HAD CCD
• High resolution 570 TV lines, RGB 756/739 pixels each
• RGB, Y/C, and VBS signals can be output simultaneously.
• HD/VD or VS external sync available
• E-DONPISHA®
-Asynchronous shutter
• Internal sync Restart Reset
• One push, automatic white balance
• On-Screen Menu
• Color-Bar
• Small, one package 50(H) x 56(W) x 128(D) mm
