当前位置:首页 > 产品中心 > 视讯会议 > 视频监控摄像机 > 会议摄像机> 产品详情

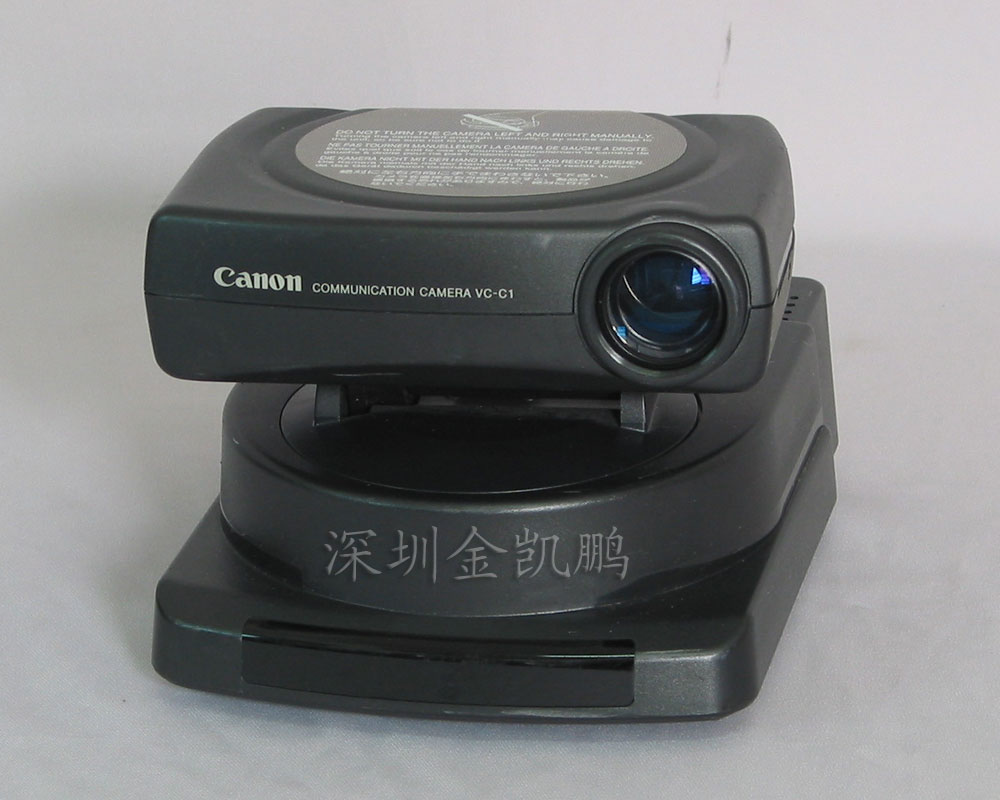

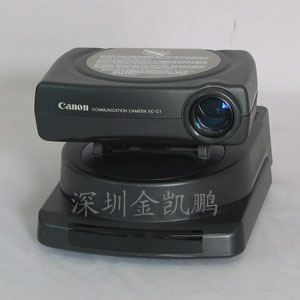

CANON  摄像机  CAMERA VC-C1
+点击查看大图



产品类别     会议摄像机
厂         商     CANON
产         地     日本
产品型号     CAMERA VC-C1



详细介绍
(全国统一免费热线: 0755-83659158 )


CANON 摄像机 CAMERA VC-C1

CANON 摄像机 CAMERA VC-C1简介:

The WebView Livescope system incorporates the use of the advanced Canon VC-C1 MKII Communications Camera which can also be purchased as a stand alone unit for other video purposes.

Canon's advancements in camera and video technology have led to the development of an innovative solution for today's demanding visual communications needs, the VC-C1 MKII Communications Camera.





With the onset of new communications technologies like VideoConferencing, Distance Learning, TeleMedicine and MultiMedia came the need to develop a video camera system that will easily adapt and exploit the features of this new systems. The VC-C1 MKII is the solution. Even traditional video applications such as security surveillance, business presentations, and education are making advances toward the use of desktop computers and the VC-C1 MKII can enhance those applications as well.




The VC-C1 MKII Communications Camera combines Canon's superior lens systems, sharp detailed video resolution and fully automated camera control into a compact yet full featured product. The VC-C1 MKII can zoom, focus, pan and tilt with speed and precision. Quality, features, performance and control?That's what makes Canon's VC-C1 MKII the perfect addition to today's visual communication systems.
Small, Lightweight and Portable Dimensions: 4 15/16" (W) x 6 ? (D) x 4 1/16" (H) Weight: Approx 2.2 lbs

Easy Operation
In addition to the autofocus, auto white balance and auto iris, this camera features a powerful 8x power zoom lens. The camera can be operated easily using the wireless controller of the RS-232C interface or over the Internet by a remote user with the Canon WebView Livescope system.
Superior Image Quality
Superior resolution and colour reproduction of the image is achieved by the 410,000 pixel, 1/3 inch CCD and advanced colour processing system.
Preset Function
You can preset the camera and zoom positions (six positions) and move the camera with one press of the button or through software controls.
Optional Wide Angle Lens
The optional WD-37 wide angle lens will convert the built-in lens to a 4.5"-36mm zoom which provides an increased wide view for large groups, etc.
Specifications:
CAMERA
Pickup device
Total pixels
Effective pixels
Horizontal Resolution
Vertical Resolution
S/N Ratio
Synchronization
Exposure Control
Shutter speed
White Balance
Backlight Correction
Fade Function 1/3-inch CCD
410,000
380,000 (494 x 768)
450 TV Lines
350 TV Lines
43 dB
Internal Synchronization
Auto iris by servomechanism
1/60, 1/100, Software setting
TTL Method, auto or lock
1.5 step
fade to white or black
LENS

Focal Length
Zoom Range

Focus
Filter Diameter 6 - 48 mm f/1.8 - 2.6
8x power zoom (Two speed zooming: Normal or High)
Auto/Manual
27 mm

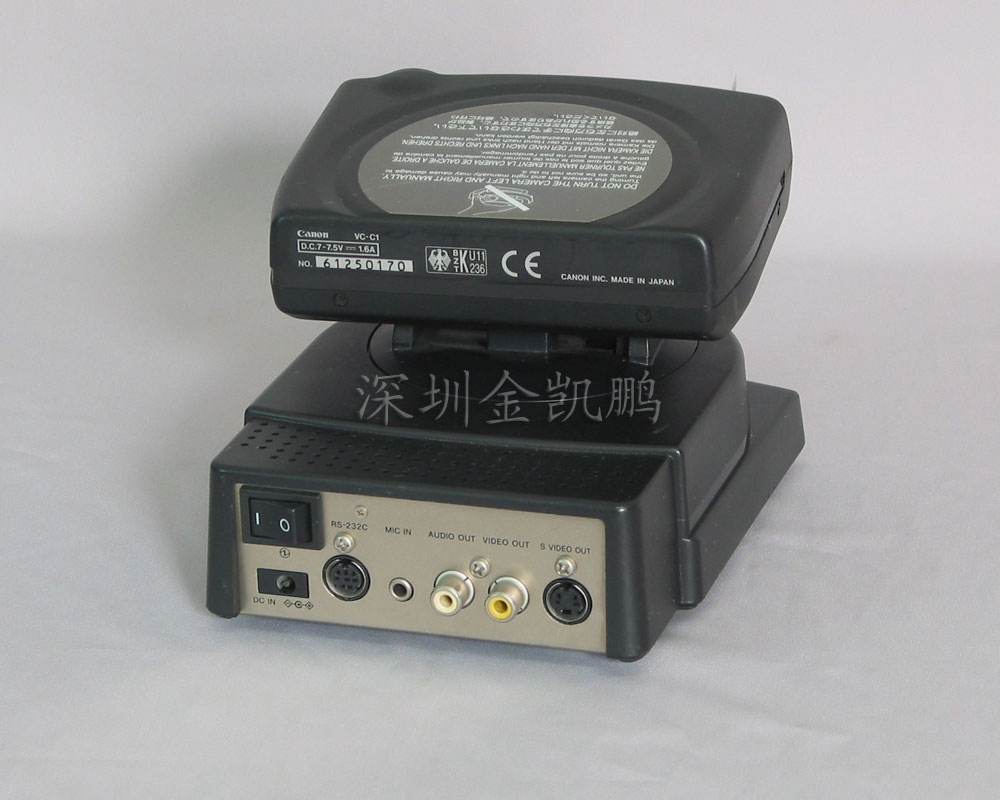

OUTPUT SIGNALS

Audio Output
Audio Output Impedance

Video Output
Video Output Impedance
Video Signal Levelf
RCA Jack
approx 1 Ohm (Volume controllable by software)
NTSC, Composite or S-Video
approx 75 Ohm
1Vp-p (luminance), 0.3 Vp-p (chrominance)
INPUT SIGNALS
Audio Input
Audio Input Impedance
IR Wireless Controller
Control Terminal RS-232 3.5mm microphone jack
5k Ohm
Infrared pulse system
RS-232 (8-pin DIN)
PAN/TILT/BASE
Pan Mechanism

Rotation angle
Rotation Speed

Tilt Mechanism

Rotation angle Up/Down
Rotation Speed

+/- 50 degrees
7.7 - 38 degrees per second



+/- 20 degrees
6.9 - 35 degrees per second
Six preset locations Includes pan/tilt/zoom information for each
Other Specifications
Power

Operating Temp/Humidity tolerances
Mounting Angle 12V DC, AC Adaptor PA-V6, 120V AC 60 Hz

41F - 95F, 20%-85%
+/- 30 degrees from a horizontal position
