汉达森（icar） 干金属介质电容THY-D3X系列2UF 5% 800/1400V THY-D3X-2-140 THY D series consists of dry metallized dielectric capacitors, self hea-
ling type, with axial terminals. The capacitor winding is enclosed in a
plastic can filled with resin. Both are self-extinguishing.
A special arrangement assures a very low series resistance and high
capability to withstand inrush currents.

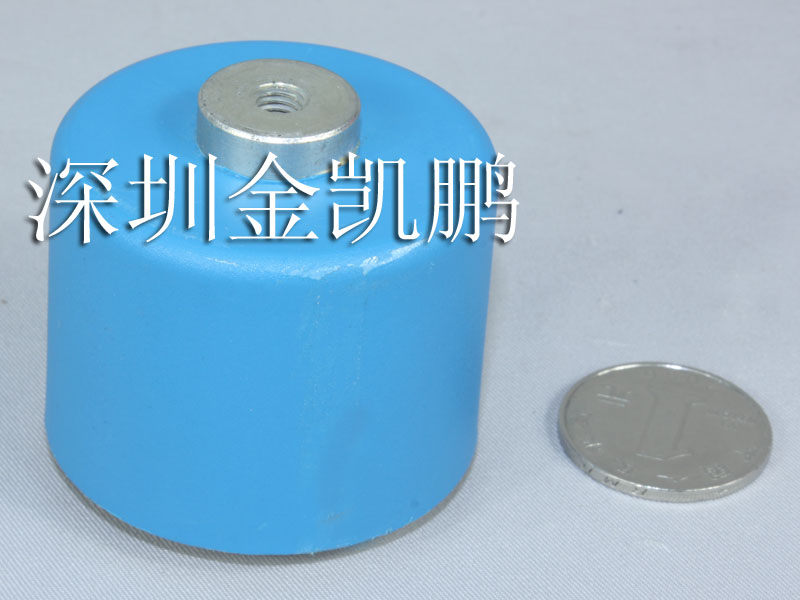

Mechanical fixing consists of threaded holes M6 or M8.
GENERAL CHARACTERISTICS
Self inductance ≤ 10 nH
Time constant between terminals (Rt · C) > 3000 s
Tan δ at 1 kHz ≤ 3 · 10
-4
Temperature coefficent of capacitance – 250 ppm/°C
Climatic category ϑ min. - 40°C ϑ max + 85°C
Storage temperature ϑ min. - 55°C ϑ max + 85°C
汉达森（icar） 干金属介质电容THY-D3X系列2UF 5% 800/1400V THY-D3X-2-140 参数
UGTO= 1400V UN= 800V Urms= 600V Umax= 1100V US= 1400V Voltage Test = 1400 VDC x 10s

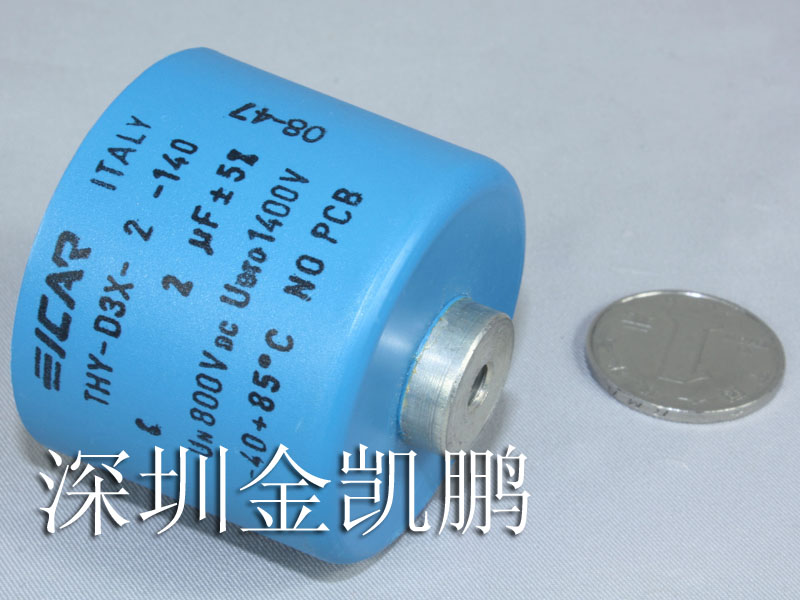

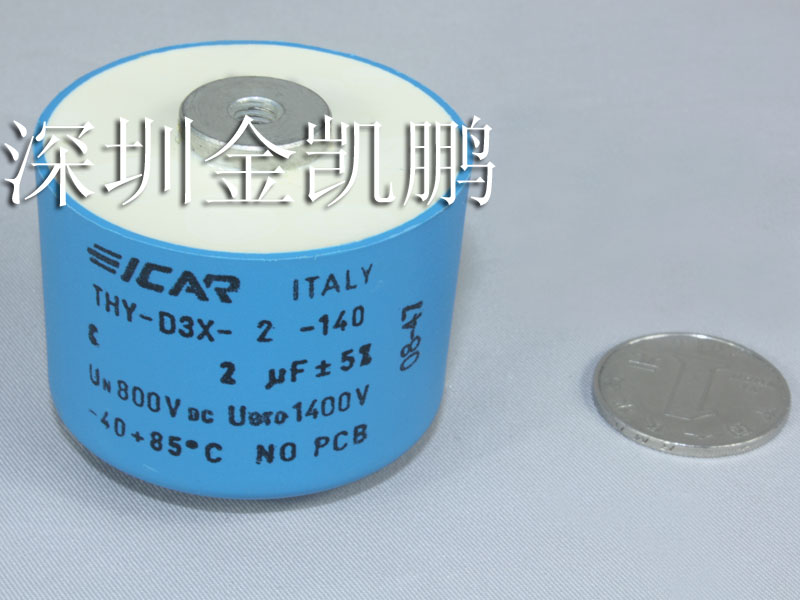

MODEL:THY -D 3 X - 2–140
CN ±5% (µ F) 2
Imax(A) 25
RS(m Ω) 0.9
dv/dt (V/µ s) 750
I peak (A) 1500
R th (°C/W) 9
Ø (mm) 50
H (mm) 49
Terminals M6
Max Tighten Torque (Nm) 6
